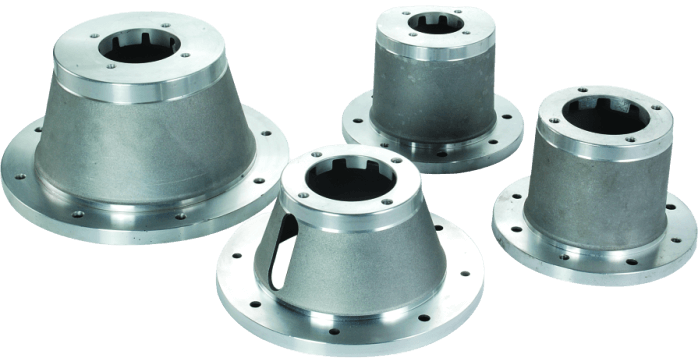

Aluminium Bell Housing
Owing to our expertise in this domain, we are offering our clients a supreme quality Aluminum Bell Housing. Our bell housings are used in the industry like electrical, plumbing & building construction. These bell housings are acclaimed in the market for its perfect finish & optimum quality. We manufacture these bell housings under the vigilance of highly skilled professionals by using leading techniques.
- By using bell housing motor and pump shaft are aligned to each other optimally.
- Material aluminium low weight with sufficient strength.
- Horizontal assembly possible with foot cum flang motor.
- Bell housing material high graded aluminium pressure die cast.
- Jacktech GJM series aluminium bell housing are precisely machined to rdeuce misalignment of couple shaft.
- Aluminium bell housing also reduces the noise generation considerably.
- Aluminium bell housing size available as per factory stock.

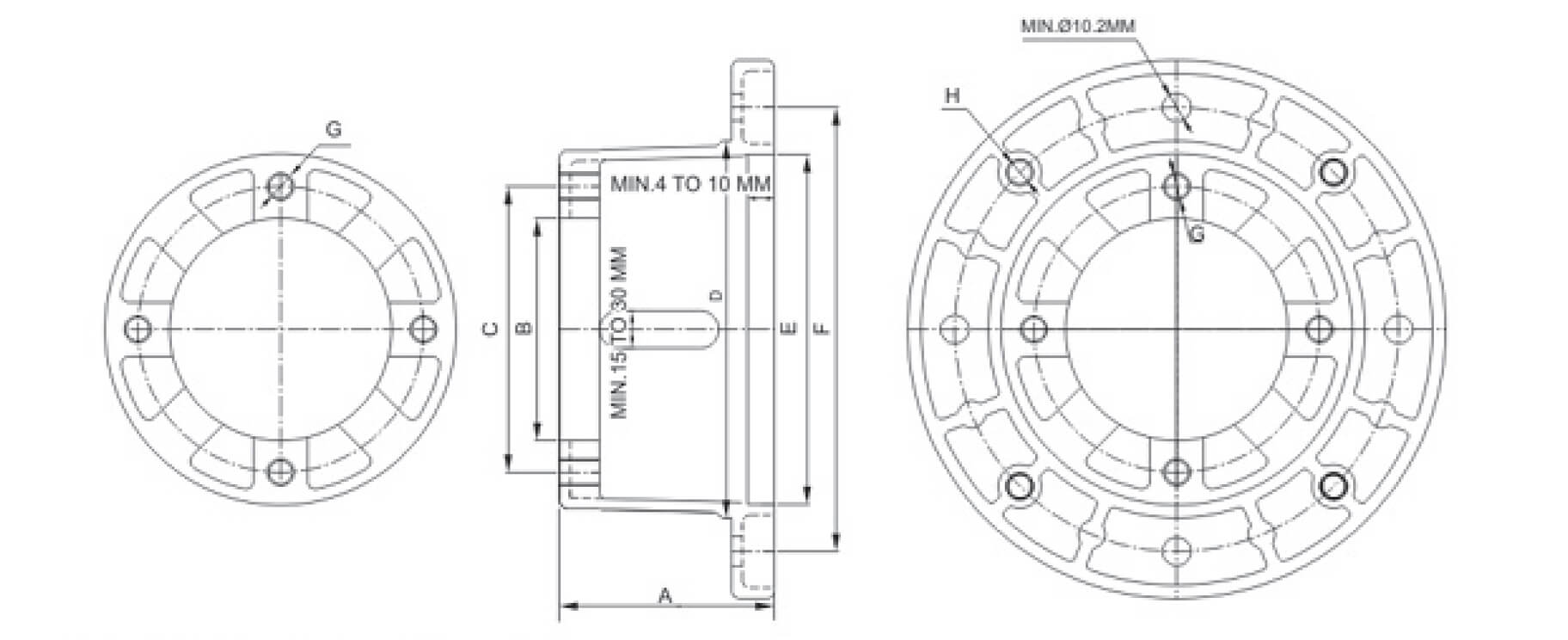

Specifications
| Part No. | Frame Size | Motor H.P. | A | B H8 | C | D | E H8 | F | G | H |
|---|---|---|---|---|---|---|---|---|---|---|
| 13082680 | 80 | 0.75,1 | 80 | 82.55 | 106.2 | 140 | 130 | 165 | M10 | M10 |
| 130826100 | 80, 90 S/L | 0.75,1,1.5,2 | 100 | 82.55 | 106.2 | 140 | 130 | 165 | M10 | M10 |
| 130826130 | 80, 90 S/L | 0.75,1,1.5,2 | 130 | 82.55 | 106.2 | 140 | 130 | 165 | M10 | M10 |
| 13060130 | 80, 90 S/L | 0.75,1,1.5,2 | 130 | 60 | 80 | 140 | 130 | 165 | θ9 | M10 |
| 180826110 | 100L / 112M | 3,5 | 110 | 82.55 | 106.2 | 180 | 180 | 215 | M10 | M12 |
| 180826124 | 100L / 112M | 3,5 | 124 | 82.55 | 106.2 | 180 | 180 | 215 | M10 | M12 |
| 18060124 | 100L / 112M | 3,5 | 124 | 60 | 80 | 180 | 180 | 215 | θ9 | M12 |
| 230826145 | 132S / 132M | 7.5,10 | 145 | 82.55 | 106.2 | 230 | 230 | 265 | M10 | M12 |
| 2301016145 | 132S / 132M | 7.5,10 | 145 | 101.6 | 145.9 | 230 | 230 | 265 | M12 | M12 |
| 23060145 | 132S / 132M | 7.5,10 | 145 | 60 | 80 | 230 | 230 | 265 | θ9 | M12 |
| 250127188/204 | 160M/L, 180M/L | 12.5,15,20,25,30 | 188/204 | 127 | 180.8 | 250 | 250 | 300 | M16 | M16 |
| 2501016188/204 | 160M/L, 180M/L | 12.5,15,20,25,30 | 188/204 | 101.6 | 145.9 | 250 | 250 | 300 | M12 | M16 |
| 250826188/204 | 160M/L, 180M/L | 12.5,15,20,25,30 | 188/204 | 82.55 | 106.2 | 250 | 250 | 300 | M10 | M16 |
| 25060188/204 | 160M/L, 180M/L | 12.5,15,20,25,30 | 188/204 | 60 | 80 | 250 | 250 | 300 | θ9 | M16 |
Note:
*This bell housing dimension as per jacktech gear coupling & jacktech standard.
*Bell housing kits with Bore key ways coupling & all mounting bolt are available.
*Bell housing kits with Bore key ways coupling & all mounting bolt are available.
Bell Housing - Cast Iron
- By using bell housings motor and pump shaft are aligned to each other optimally
- Horizontal assembly possible with foot cum flang motor
- Bell housing material high greaded cast iron
- Casting bell housing also reduces the noise generation considerably
- Casting bell housing size available as per factory stock
