Hydraulic Accessories

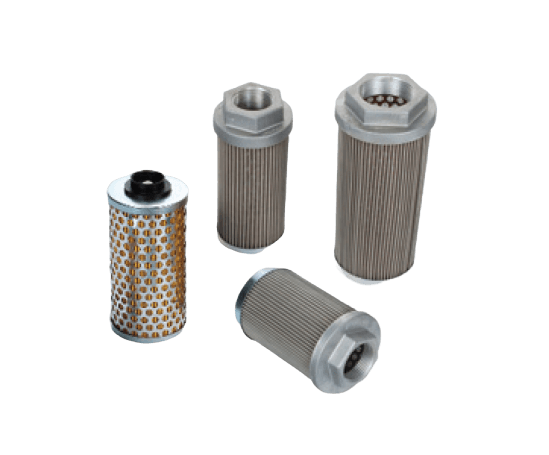

Suction Stainer
Characteristics
- Reusable stainless steel 100 mesh standard.
- Sturdy all metal plated Steel construction.
- Filtration 149 microns.
- Paper filter also available as per custom built-Any Standard

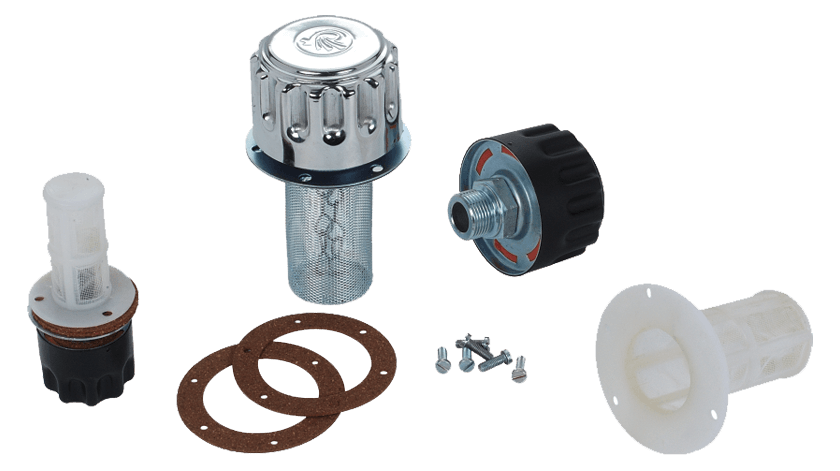

Filler Breather / Tank Breather
- Stainless Steel Cap. Vents underneath.
- Filtration 40 microns standard.
- Metal or plastic stainer standard.
| MODEL | FSB - 05 | FSB - 25 | FSB - 05 | FSB - 25 |
|---|---|---|---|---|
| CONNECTION BSP (F) | --- | --- | 1/4" | 3/4" |
| FLOW (lpm) | 150 | 750 | 150 | 750 |

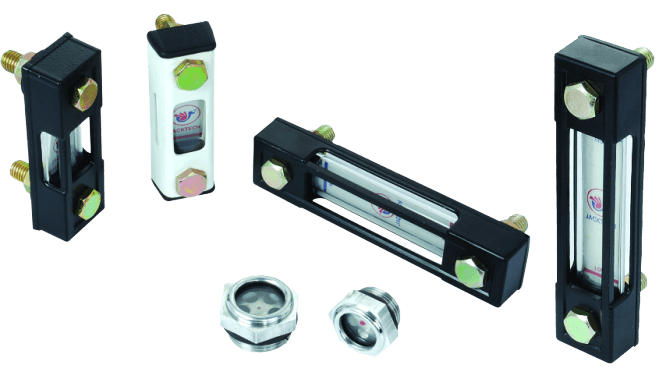

Fluid Level Indicator
- '0' Ring Type Construction
- FACT TYPE: 3" & 5" between bolt centers.
- KNOB TYPE: 1/4" to 1 1/2" BSP(M) connection.
- BODY: Aluminium pressure Die-cast

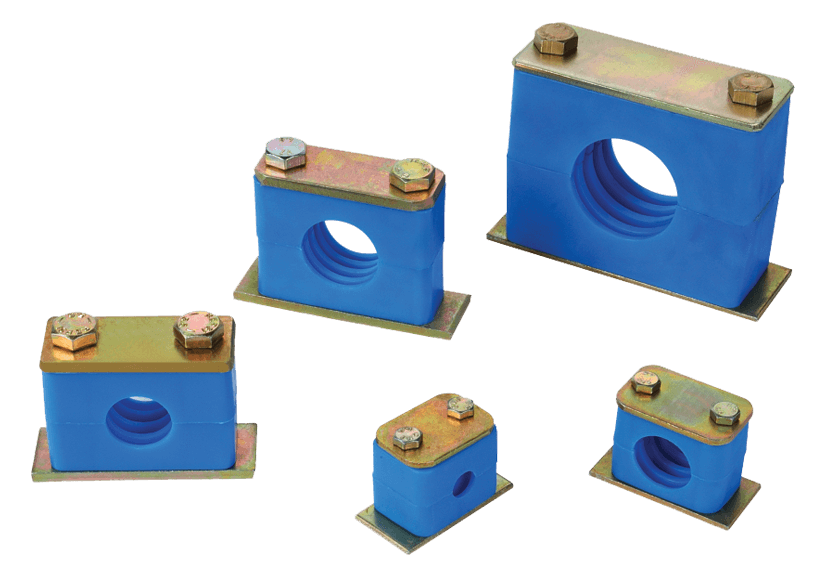

Pipe Clamps
- Jacktech Clamps according to DIN 3015.
- High Density polythene mould and mild steel plates construction.
- Heavy & light duty.
- Range 6 mm to 324 mm pipe OD.

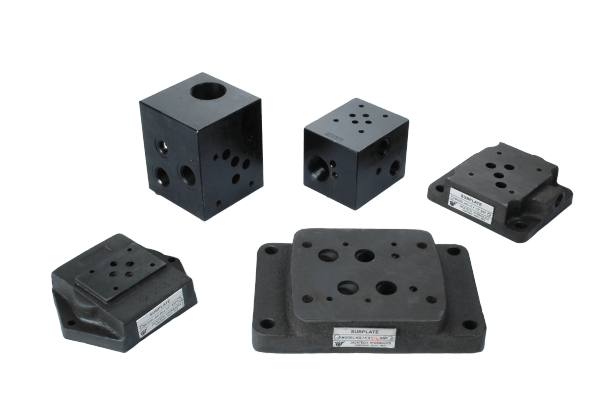

Mainfold Blocks / Subplates
- Mainfold block for any type custom built systems are availabel.
- Any type of subplates for DC valve-Pre. Relief valve and flow control valve.
| MODEL | CONNECTION (BSP) |
|---|---|
| NG-06 | 1/4", 3/8" & 1/2" |
| NG-10 | 1/4", 3/8" & 1/2" |
| NG-16 | 1/2" & 3/4" |
| NG-20 | 3/4" & 1" |

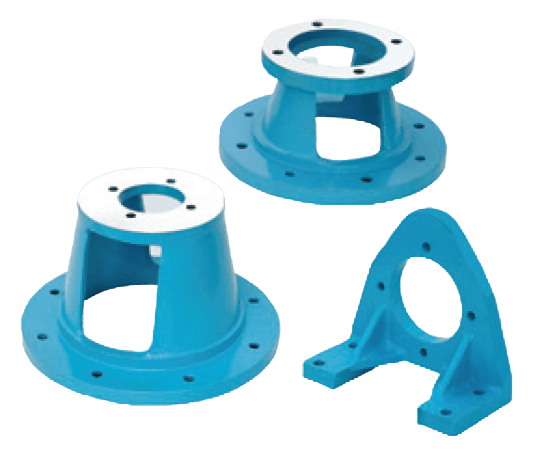

Bell Housing / L Type
- Material - High graded C.I. Casting.
- Size: 0.5HP to 75HP.
- Extension Bracket for Piston Pump to Gear Pump & Vane Pump.
- Suitable for Gear Pump, Vane Pump, Piston Pump, Screwed Pump, Variable Piston Pump& Servo Pump.
- Also available coupling with bolt kit.

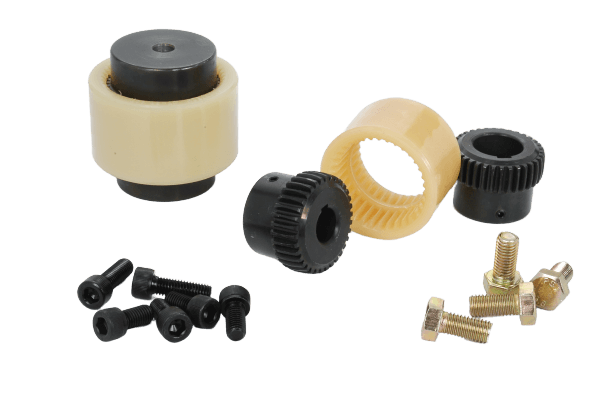

Gear Coupling
- Material Steel hub & high graded plastic material sleeve
| MODEL | JT-19 | JT-28 | JT-38 | JT-48 | JT - 65 |
|---|---|---|---|---|---|
| PILOT BORE (mm) | 07 | 10 | 12 | 15 | 20 |
| SUITABLE MOTOR HP | 0.25 - 1 | 1 - 5 | 5-10 | 10 - 30 | 40 - 60 |
